主要尺寸和性能數據

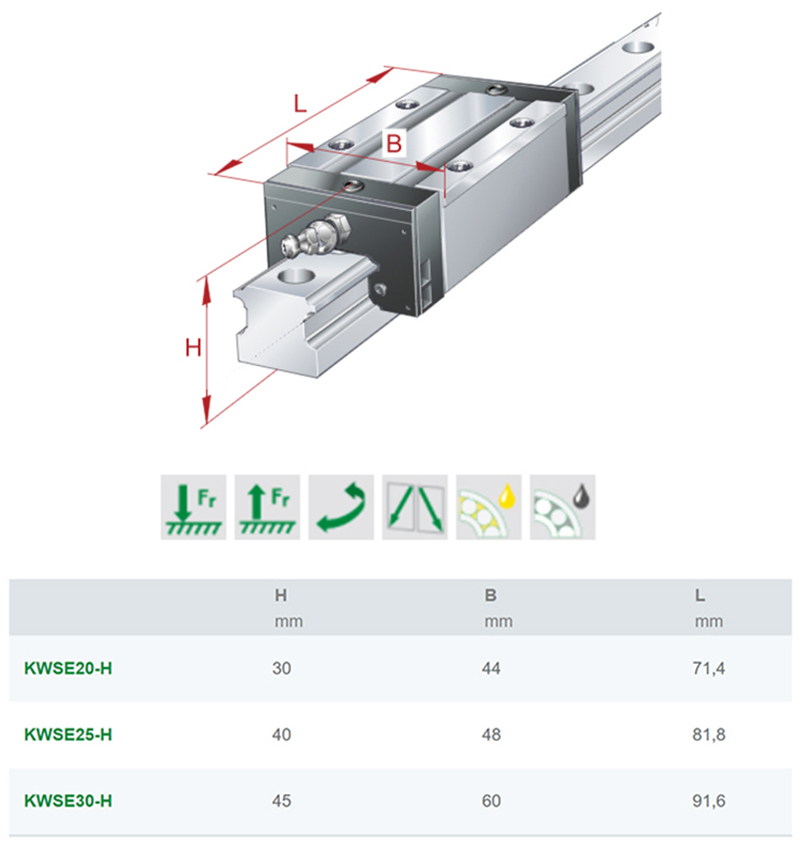

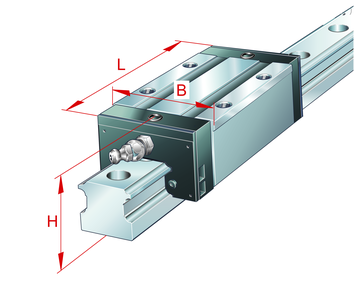

| H | 45 mm | height system |
| B | 60 mm | width carriage |
| L | 91.6 mm | overall length carriage |
| I C | 40,000 N | dynamic load rating, load direction I: compressive load |
| I C0 | 80,000 N | static load rating, load direction I: compressive load |
| II C | 37,800 N | dynamic load rating, load direction II: tensile load |
| II C0 | 60,000 N | static load rating, load direction II: tensile load |
| III C | 40,000 N | dynamic load rating; basic dynamic load rating, Load direction III: lateral load |
| III C0 | 62,000 N | static load rating, Load direction III: lateral load |
| ≈m | 0.9 kg | 重量 |
